Product Specification/Models

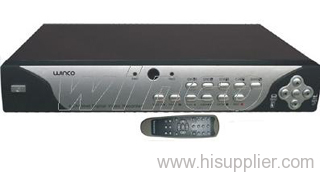

☆ Model:W6032
☆ Video Compression:H.264
☆ Video System;NTSC / PAL
Operation System:Linux
☆ Video Input / Output:BNC 4-channel inputs / 2-channel outputs
☆ Audio Compression:8kHz*16bit ADPCM
☆ Audio Input / Output: RCA 4-channel inputs / 2-channel outputs
☆ Display Frame Rate:NTSC: 120 fps / PAL: 100 fps
☆ Playback Resolution:PAL: CIF(352x288), HD1(704x288), D1(704x576)
NTSC: CIF(352x240), HD1(704x240), D1(704x480)
☆ Total Recording Frame Rate:PAL: 25fps@D1, 50fps@HD1, 100fps@CIF
NTSC: 30fps@D1, 60fps@HD1, 120fps@CIF
☆ Recording Mode:Always / schedule / motion detection / sensor triggered
☆ Recording Pack Time:15/30/45/60mins selectable
☆ HDD Interface:Support SATA HDD & USB disk
☆ Network Interface:RJ45, 10M/100M
☆ Network Protocol:Support TCP/IP, UDP, DHCP, DNNS, PPPoE
☆ Network Function:Support to live view with IE (Internet Explorer) & with Mobile phone
☆ USB2.0:USB mouse, USB disk (backup, upgrade)
☆ Playback Mode:Normal play, fast forward, fast rewind, frame by frame
Backup:Backup AVI file via USB flash disk, USB disk, USB CD/DVD-RW & Network
PTZ Control:Built-in RS485, support PELCO-P & PELCO-D
☆ Alarm Mode:Motion Detection, Sensor triggered, video loss, HDD error, HDD full
☆ Senor & Alarm I/O:4 sensor inputs / 1 alarm output
☆ Power Supply:DC 12V/3A (power adaptor included)
☆ Power Consumption:10~15W
☆ Working Temperature:-10°C to +40°C
☆ Working Humidity:10% to 90%
☆ Dimension:300x220x47mm (WxDxH)
☆ Extension Model:
W6032V:W6032 with 1 VGA output
